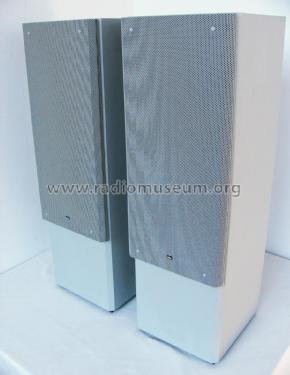

Stand-Monitor M 9

Stand-Monitor M 9; Braun; Frankfurt (ID = 1553648) Speaker-P
Stand-Monitor M 9; Braun; Frankfurt (ID = 1498046) Speaker-P Stand-Monitor M 9; Braun; Frankfurt (ID = 1932131) Speaker-P
Stand-Monitor M 9; Braun; Frankfurt (ID = 1932132) Speaker-P Stand-Monitor M 9; Braun; Frankfurt (ID = 1932133) Speaker-P
Use red slider bar for more.
Stand-Monitor M 9; Braun; Frankfurt (ID = 1498046) Speaker-P
Braun; Frankfurt: Stand-Monitor M 9 [Speaker-P] ID = 1498046 450x1271
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stand-Monitor M 9, Braun; Frankfurt:
scan aus 'Neue Ansichten vom Hören', Braun Aug. 1989

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1989 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Stand-Monitor M 9 - Braun; Frankfurt
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 250 x 790 x 265 mm / 9.8 x 31.1 x 10.4 inch
Notes

Bauart:3-Wege, geschlossen
Übertragungsbereich: 32 ... 25.000 Hz
Musikbelastbarkeit: 150 Watt
Nennbelastbarkeit: 120 Watt
Wirkungsgrad (1W/1m): 87 dB
Nennscheinwiderstand: 4 Ohm
Frequenzweiche:18/24 dB/Oktave, Linkwitz-Riley-Filter
Übergangsfrequenzen: 700/6.000 Hz

Tieftöner:Ø 215 mm | Typ: dyn. Konus
Mitteltöner: Ø 37 mm | Typ: dyn. Kalotte
Hochtöner:  Ø 25 mm | dyn. Kalotte
Gehäuse: Holz beschichtet
Gehäuse-Volumen (Brutto): 52,3 l
Gehäuse-Farbe: schwarz, grau,

Net weight (2.2 lb = 1 kg) 16 kg / 35 lb 3.9 oz (35.242 lb)
Mentioned in -- Original prospect or advert

Model page created by Eberhard Fuchs. See "Data change" for further contributors.
