Lautsprecherbox L11
Use red slider bar for more.

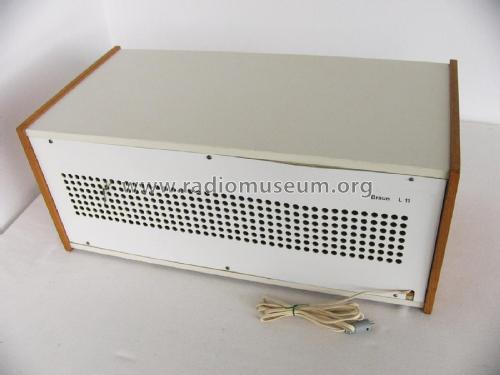

Braun; Frankfurt: Lautsprecherbox L11 [Speaker-P] ID = 86220 350x192
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1961–1963 | Category: Loudspeaker, headphone or earphone |
| Wave bands | - without |
|---|---|
| Details | |
| Power type and voltage | No Power needed / 0 Volt |
| Loudspeaker | 3 Loudspeakers |
| Power out | |
| from Radiomuseum.org | Model: Lautsprecherbox L11 - Braun; Frankfurt |
| Material | Wooden case |
| Dimensions (WHD) | 583 x 238 x 290 mm / 23 x 9.4 x 11.4 inch |
| Notes | Mittel-Tiefton-System 26×18 cm, 2 Hochton-Systeme 10 cm Ø. Impedanz 4-6 Ohm, Belastbarkeit max. 6 W. |
| Net weight (2.2 lb = 1 kg) | 5.8 kg / 12 lb 12.4 oz (12.775 lb) |
| Price in first year of sale | 149.00 DM |
| External source of data | Erb |
| Source of data | HdB d.Rdf-& Ferns-GrH 1961/62 |
