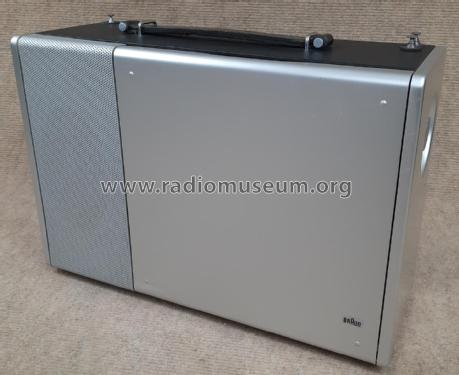

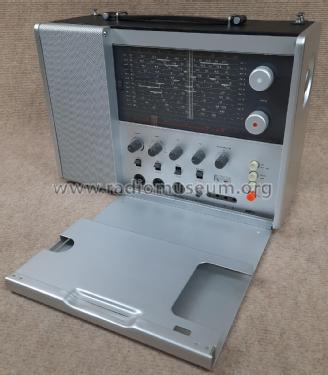

For model Station T1000CD mit BF243 im AM-Eingang, ab Ger. Nr. 10001, Braun; Frankfurt:
Produktionsnummer 21903

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1970/1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 19: AF106 AF124 AF106 AF126 AF126 AF126 AF126 BF243 BF243 AF124 AF126 AF126 AF126 AF126 AC151 or. AC150
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Tuned circuits 10 AM circuit(s)     14 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Dry Batteries / 8 × 1,5 & 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.3 W (unknown quality)
from Radiomuseum.org Model: Station T1000CD [mit BF243 im AM-Eingang, ab Ger. Nr. 10001] - Braun; Frankfurt
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 360 x 240 x 135 mm / 14.2 x 9.4 x 5.3 inch
Notes Letzte Version des Braun T1000CD, der im AM-Mischteil mit 2 Silizium-Transistoren BF243(S) ausgerüstet ist. Die Schaltung ist sonst unverändert zum Modell 1968 mit 19 Transistoren bestückt. Der VDRG-Katalog nennt 21 Transistoren, wobei die 2 Transistoren der Stromversorgung TN1000 hier bereits mitgezählt werden.
UKW-AFC; BFO; Feldstärke-Anzeige; variable Bandbreite; Peilmöglichkeit mit Peilkreuz PK1000 und Peilvorsatz PV1000 (als Zubehör gegen Mehrpreis). Externe Stromversorgung möglich.
Net weight (2.2 lb = 1 kg) 8.1 kg / 17 lb 13.5 oz (17.841 lb)
Price in first year of sale 1'500.00 DM
Collectors' prices
Source of data Handbuch VDRG 1970/1971

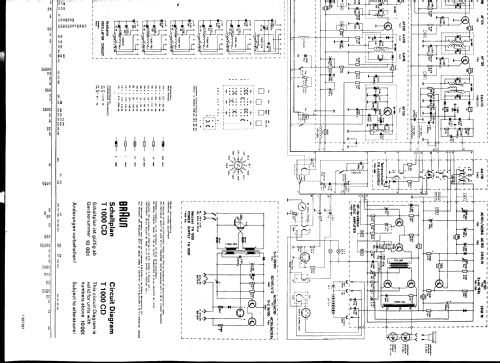

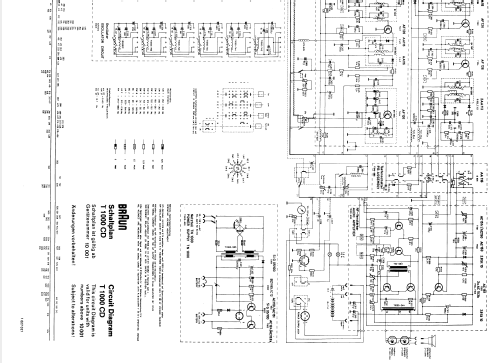

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
