Trumpf Junior 560W

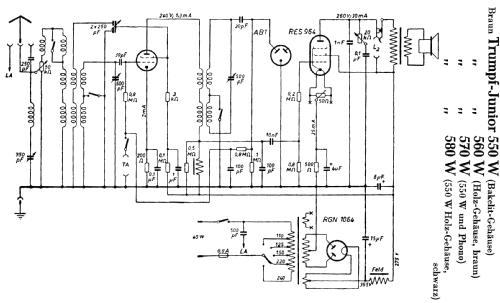

Trumpf Junior 560W; Braun; Frankfurt (ID = 485512) Radio
Trumpf Junior 560W; Braun; Frankfurt (ID = 160195) Radio Trumpf Junior 560W; Braun; Frankfurt (ID = 160196) Radio
Trumpf Junior 560W; Braun; Frankfurt (ID = 160197) Radio
Use red slider bar for more.

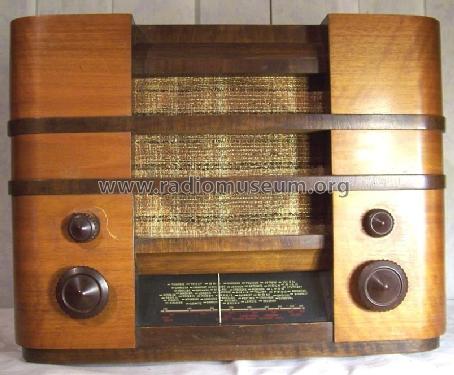

Trumpf Junior 560W; Braun; Frankfurt (ID = 160195) Radio
Braun; Frankfurt: Trumpf Junior 560W [Radio] ID = 160195 805x664
Select picture or schematic to display from thumbnails on the right and click for download.
For model Trumpf Junior 560W, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: RENS1264 AB1 RES964 RGN1064
Main principle TRF with diode detector; 1 Special; 1 AF stage(s); Reflex
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Trumpf Junior 560W - Braun; Frankfurt
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes Holz,br;Ch=550etc.; Reflex
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + Schenk


All listed radios etc. from Braun; Frankfurt
Here you find 1040 models, 904 with images and 641 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Braun; Frankfurt: Trumpf Junior 560W
Threads: 1 | Posts: 1
Hits: 1424     Replies: 0
braun: Schaltplan aus Lange-Nowisch
Walter Wiesmüller † May 2012
30.Dec.02
  1 Dieser Plan git für die Wechselstrommodelle 550, 560, 570 und 580. Die Gleichstrommodelle enden mit 5 und haben z.T. ein anderes Gehäuse, z.B. 555GL mit Bakelit-Gehäuse und RENS1884, BB1 und BL2.
