Trumpf Junior 585GL
Use red slider bar for more.

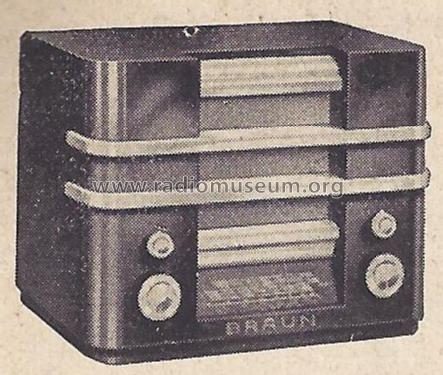

Braun; Frankfurt: Trumpf Junior 585GL [Radio] ID = 1400988 447x378
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1935/1936 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 3: RENS1884 BB1 BL2 Urdox |
|---|
| Main principle | TRF with diode detector; 1 Special; 1 AF stage(s); Reflex |
|---|---|
| Tuned circuits | 2 AM circuit(s) |
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | Direct Current supply (DC) / 220 Volt |
| Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) |
| Power out | |
| from Radiomuseum.org | Model: Trumpf Junior 585GL - Braun; Frankfurt |
| Material | Wooden case |
| Shape | Tablemodel, with any shape - general. |
| Dimensions (WHD) | 420 x 320 x 250 mm / 16.5 x 12.6 x 9.8 inch |
| Notes | Rückk.; Reflex Holz-Schwarz |
| Price in first year of sale | 220.00 RM |
| Source of data | Katalog Radio-Zentrale Alex v. Prohaska 1935/1936 / Radiokatalog Band 1, Ernst Erb |
| Circuit diagram reference | Lange + Schenk |
