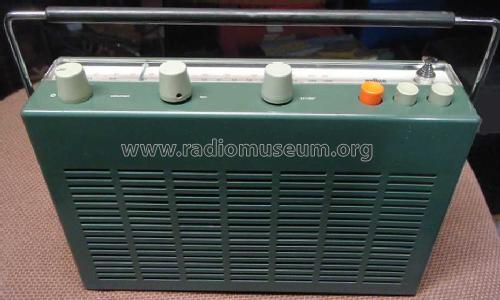

UKW-Transistor-Koffer T510; Braun; Frankfurt (ID = 66118) Radio
Braun; Frankfurt: UKW-Transistor-Koffer T510 [Radio] ID = 66118 865x566

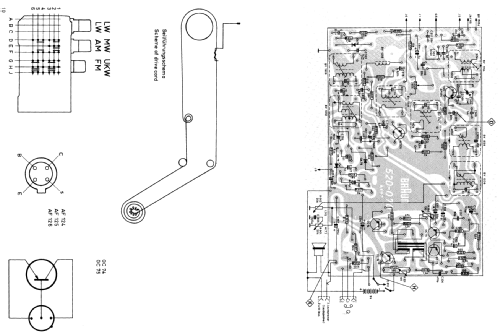

Select picture or schematic to display from thumbnails on the right and click for download.
For model UKW-Transistor-Koffer T510, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1963/1964 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF124 AF125 AF126 AF126 AF126 OC75 OC75 OC74 OC74 OA70 OA79 OA79
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 0.8 W (unknown quality)
from Radiomuseum.org Model: UKW-Transistor-Koffer T510 - Braun; Frankfurt
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 230 x 153 x 59 mm / 9.1 x 6 x 2.3 inch
Notes

Bestückung anstatt 2x OC75 auch OC305[/I] und OC304[/II] bzw. 2X OA79 oder 2x RL232g.
Farben: hellgrau und blaugrau.
Anschlüsse: Antenne, TB, ext. Lautsprecher/KH.

Wellenbereiche: UKW: 87 - 108 MHz
MW: 515 - 1.620 kHz
LW:  145 - 320 kHz

Net weight (2.2 lb = 1 kg) 1.7 kg / 3 lb 11.9 oz (3.744 lb)
Price in first year of sale 229.00 DM
Collectors' prices
Source of data Handbuch VDRG 1963/1964 / Radiokatalog Band 1, Ernst Erb
Mentioned in Handbuch RFP 1963
