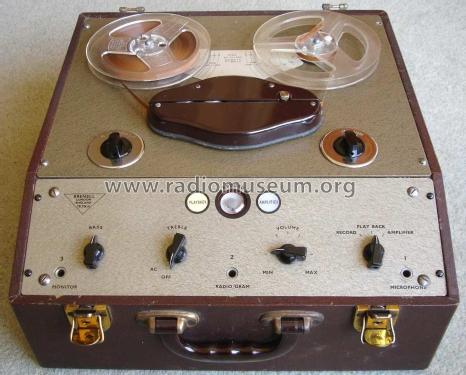

Tape recorder TR Mk II
Brenell Engineering Co Ltd.; Clerkenwell, London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Brenell Engineering Co Ltd.; Clerkenwell, London
- Year
- 1956
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 173226
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110; 200; 230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 3 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: Tape recorder TR Mk II - Brenell Engineering Co Ltd.;
- Dimensions (WHD)
- 400 x 425 x 210 mm / 15.7 x 16.7 x 8.3 inch
- Notes

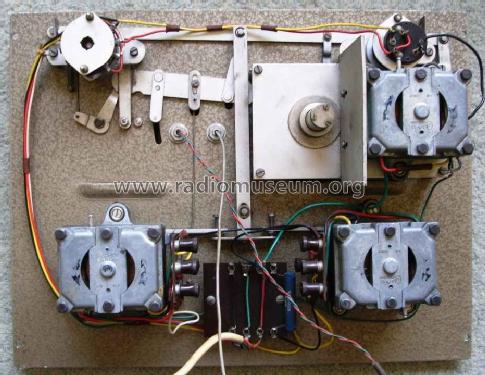

- 3 speed (15 ips, 7.5 ips, 3.75 ips) open reel tape recorder with 3 shaded pole AC motors. Fixed tape equalisation on all speeds. Elliptical loudspeaker 8 x 5 inch.
- Net weight (2.2 lb = 1 kg)
- 34.5 lb (34 lb 8 oz) / 15.663 kg
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
