• Country
• United States of America (USA)

• Manufacturer / Brand
• Brooks Laboratories, Inc.; Waltham

• Year
• 1953/1953 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 129326

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6CB6 6J6 6BE6 6CB6 6CB6 6CB6 6AU6 6AU6 6AL5 6X4

• Main principle
• Superhet with RF-stage

• Tuned circuits
• 13 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: ST-10 - Brooks Laboratories, Inc.;

• Shape
• Chassis only or for «building in»

• Notes

• Brooks Labs model ST-10 is an AC operated FM superheterodyne tuner for custom installation.

• Literature/Schematics (1)

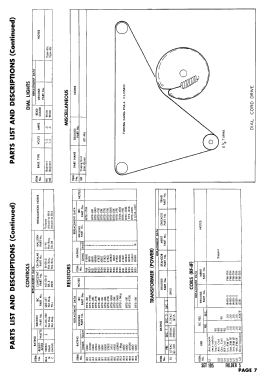

• Photofact Folder, Howard W. SAMS (Set 195, folder 5, dated 2-53)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
