5R ; Browning-Drake Corp. (ID = 837987) Radio
Browning-Drake Corp.: 5R [Radio] ID = 837987 933x455
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5R, Browning-Drake Corp.; Brighton, Massachusetts:

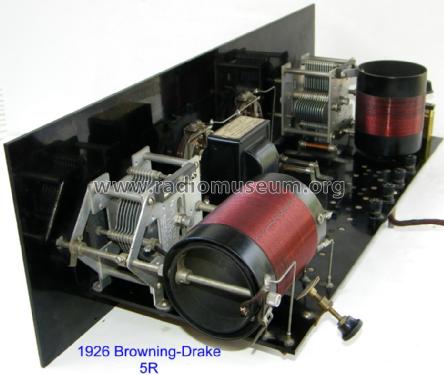

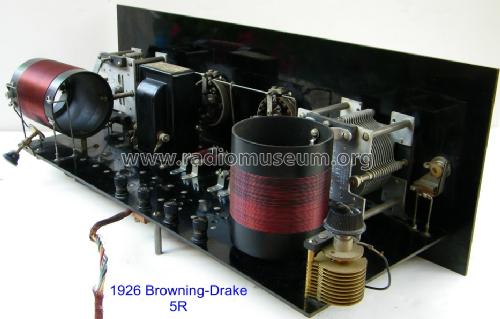

Factory built Browning-Drake Regenaformer 5R

Country:  United States of America (USA)
Manufacturer / Brand:  Browning-Drake Corp.; Brighton, Massachusetts
Year: 1926 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UX199 UX200A or UX201A UX201A UX201A UX171 or UX112 or UX201A
Main principle TRF with regeneration
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: 5R - Browning-Drake Corp.; Brighton
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 24.5 x 10 x 11.5 inch / 622 x 254 x 292 mm
Notes The Browning-Drake 5R was a factory built set from late 1926. It used the very successful Regenaformer circuit developed by Glenn Browning and Frederick Drake while they were at Harvard University in 1923 and engaged in research to increase the efficiency of radio frequency transformers. The model number 5R stood for 5 tubes and the R was for resistance coupled audio, sets without the R were transformer coupled audio. Tube lineup was RF 199, Detector 200A or 201A, 1st and 2nd Audio 201A, 3rd audio 171, 112 or 201A
Price in first year of sale 95.00 $
Collectors' prices
Mentioned in Radio Manufacturers of the 1920s, Vol 1 (Page 99)

Model page created by Alan Larsen. See "Data change" for further contributors.
