- Country
- United States of America (USA)
- Manufacturer / Brand
- Browning Laboratories Inc.; USA
- Year
- 1955/1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 98495
SAMS

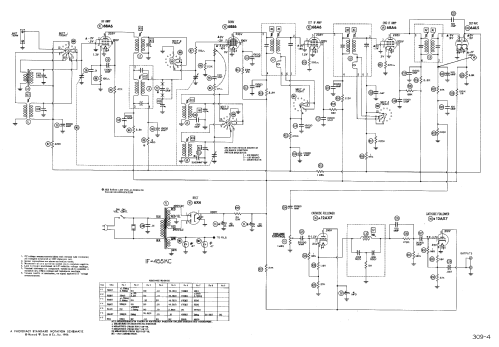

Click on the schematic thumbnail to request the schematic as a free document.
- Main principle
- Superhet with RF-stage
- Tuned circuits
- 10 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: L-500 - Browning Laboratories Inc.;
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 9 x 4.7 x 8 inch / 229 x 119 x 203 mm
- Notes
-
Browning model L-500 is an AC operated AM BC-SW superheterodyne receiver.
- Price in first year of sale
- 88.00 $
- External source of data
- Allied Radio Catalog Nº 150, 1956
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 3-56, set 309, folder 4)
- Author
- Model page created by Vitor Oliveira. See "Data change" for further contributors.
