For model RV-11, Browning Laboratories Inc.; USA

Country:  United States of America (USA)
Manufacturer / Brand:  Browning Laboratories Inc.; USA
Year: 1948 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 6AU6 7F8 6AU6 6AU6 6U5 6SJ7 6SJ7 6H6 80
Main principle Superhet with RF-stage; ZF/IF 8250 kHz
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: RV-11 - Browning Laboratories Inc.;
Material Metal case
Shape Chassis only or for «building in»
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 18 = 1949 and before

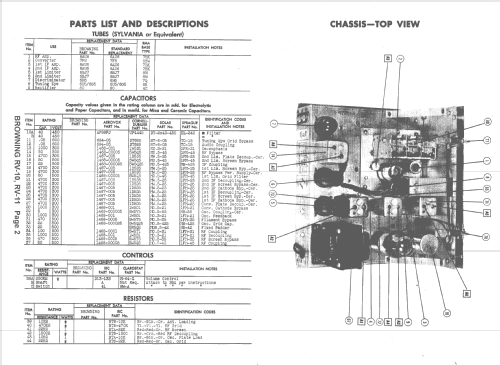

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 46 Folder 6 dated 9-48)


All listed radios etc. from Browning Laboratories Inc.; USA
Here you find 55 models, 42 with images and 18 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
