Super 5910

Super 5910; Bruns; Hamburg (ID = 2533767) Radio

Super 5910; Bruns; Hamburg (ID = 2533768) Radio

Super 5910; Bruns; Hamburg (ID = 2533769) Radio
Super 5910; Bruns; Hamburg (ID = 2533017) Radio Super 5910; Bruns; Hamburg (ID = 2533022) Radio
Super 5910; Bruns; Hamburg (ID = 2533759) Radio Super 5910; Bruns; Hamburg (ID = 2533761) Radio

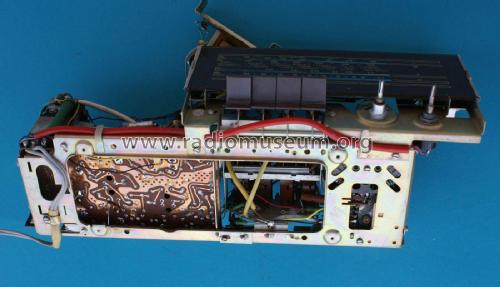

Super 5910; Bruns; Hamburg (ID = 2533762) Radio Super 5910; Bruns; Hamburg (ID = 2533765) Radio
Super 5910; Bruns; Hamburg (ID = 2533766) Radio
Use red slider bar for more.
Super 5910; Bruns; Hamburg (ID = 2533017) Radio
Bruns; Hamburg: Super 5910 [Radio] ID = 2533017 1400x759
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super 5910, Bruns; Hamburg

Country:  Germany
Manufacturer / Brand:  Bruns; Hamburg
Year: 1965–1967 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECC85 ECH81 EAF801 ECL82
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Super 5910 - Bruns; Hamburg
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 450 x 160 x 160 mm / 17.7 x 6.3 x 6.3 inch
Notes

Der UKW-Bereich geht bis 104 MHz, die AM-Abstimmung erfolgt wie die FM-Abstimmung über Variometer, die am UKW Mischteil angebaut sind. Das Gerät verfügt über keine Tonblende.

Herstellung wahrscheinlich durch Stern-Radio Sonneberg für Bruns Hamburg, das Chassis dürfte ähnlich zum Modell Intimo 5400 sein.

Net weight (2.2 lb = 1 kg) 4.8 kg / 10 lb 9.2 oz (10.573 lb)

Model page created by Manfred Rauschen. See "Data change" for further contributors.
