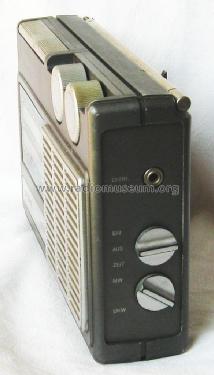

TR2010; Bruns; Hamburg (ID = 1353806) Radio
Bruns; Hamburg: TR2010 [Radio] ID = 1353806 800x846
Select picture or schematic to display from thumbnails on the right and click for download.
For model TR2010, Bruns; Hamburg:
Foto: Thomas Klemowicz. Vielen Dank

Country:  Germany
Manufacturer / Brand:  Bruns; Hamburg
Year: 1984 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 4: SF235 SF235 SC236 SC308 A283D A302 SAY30
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 4 AM circuit(s)     5 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 6; 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: TR2010 - Bruns; Hamburg
Dimensions (WHD) 170 x 110 x 40 mm / 6.7 x 4.3 x 1.6 inch
Notes

Hergestellt bei "VEB Mikroelektronik Neuhaus a.R." als Exportmodell des TR2010  für BRUNS.

Einchipempfängerschaltkreis A283D. Piezokeramische Filter eingebaut.
Externes Netzteil mit Sekundär 6 V kann angeschlossen werden.
Schlummerautomatik eingebaut, schaltet das Gerät nach 30 Min. ab.

Net weight (2.2 lb = 1 kg) 0.465 kg / 1 lb 0.4 oz (1.024 lb)
Collectors' prices
Mentioned in "Das Kofferradio in der DDR"

Model page created by Wolfgang Lill. See "Data change" for further contributors.
