• Country
• Germany

• Manufacturer / Brand
• Bruns; Hamburg

• Year
• 1977/1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 125147

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 6×1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

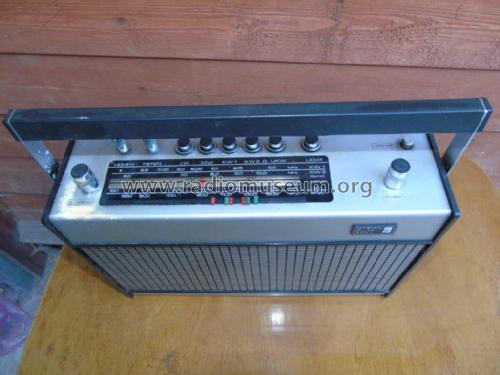

• Model: TRK Stern Elite 2001 - Bruns; Hamburg

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 326 x 218 x 99 mm / 12.8 x 8.6 x 3.9 inch

• Notes
• Exportmodell des gleichnamigen Gerätes von Stern-Radio Berlin.

• Source of data
• Handbuch VDRG 1977/1978

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
