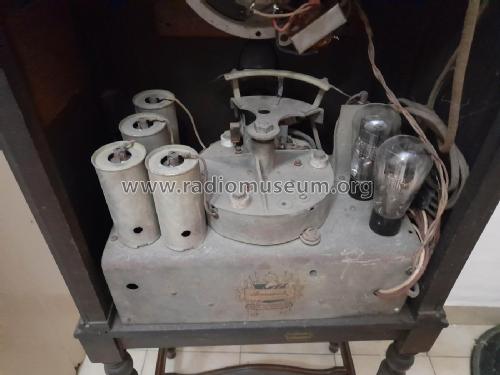

Brunswick-Balke-: 12 [Radio] ID = 1507083 535x970
Select picture or schematic to display from thumbnails on the right and click for download.
For model 12 w/o AVC, Brunswick-Balke-Collender Co.:
Thanks for Mr.Nemzetioszeres, Hungary, and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  United States of America (USA)
Manufacturer / Brand:  Brunswick-Balke-Collender Co.
Year: 1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 51 24 24 51 24 47 80
Main principle Superhet with RF-stage; ZF/IF 175 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 105-115; 115-130 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 12 [w/o AVC] - Brunswick-Balke-Collender Co.
Material Wooden case
Shape Console, Highboy (legs > 50 %).
External source of data E. Erb 3-907007-36-0
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
Literature/Schematics (1) Rider's Perpetual, Volume 2 = 1932 and before


All listed radios etc. from Brunswick-Balke-Collender Co.
Here you find 99 models, 27 with images and 67 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
