• Country
• France

• Manufacturer / Brand
• BST, Bisset Groupe Industrie; Argenteuil

• Year
• 1976 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 273177

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 144 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: Solid State Stereo Amplifier IC 1000 - BST, Bisset Groupe Industrie;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 422 x 150 x 350 mm / 16.6 x 5.9 x 13.8 inch

• Notes

• BST Solid State Stereo Power Amplifier Model IC 1000.
  Power output: 72 watts per channel into 8Ω (stereo)
  Frequency response: 20Hz to 35kHz
  Total harmonic distortion: 0.19%
  Input sensitivity: 0.5V
  2x VU-Meter
  Speakers A, B

• Net weight (2.2 lb = 1 kg)
• 11.3 kg / 24 lb 14.2 oz (24.89 lb)

• Mentioned in

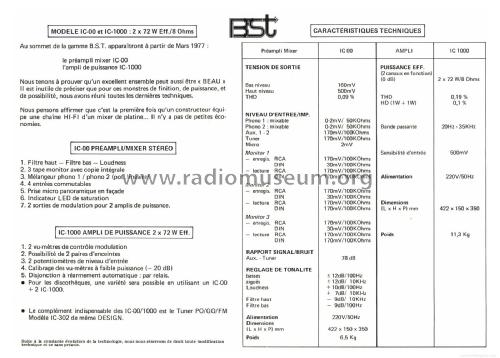

• -- Original prospect or advert (BST Katalog - Haute Fidelite)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.

• Other Models

• Here you find 16 models, 14 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from BST, Bisset Groupe Industrie; Argenteuil
