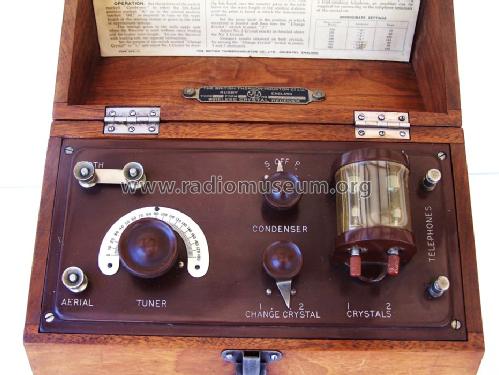

For model Type C Form A Radiola Form A late, BTH (B.T.H.), British Thomson-Houston Co, Ltd.:
British Thomson-Houston Co, Ltd., Type C Form A Radiola Form A late - 4

Country:  Great Britain (UK)
Manufacturer / Brand:  BTH (B.T.H.), British Thomson-Houston Co, Ltd.
Year: 1923 Category: Detector-Radio (Crystal or diode, without tubes/transistors)
Main principle Crystal or Solid State Detector
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Type C Form A Radiola Form A [late] - BTH B.T.H., British Thomson-
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 11.25 x 8.5 x 5.25 inch / 286 x 216 x 133 mm

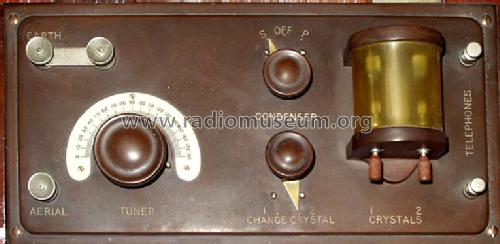

Notes BBC/PMG stamp; GPO No.106; Crystal changeover switch permit to select one of two independant crystals; LW-coils available;
Source of data Radio! Radio!

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
