Qualiton M11

Qualiton M11; Budapesti (ID = 268722) R-Player
Qualiton M11; Budapesti (ID = 451860) R-Player Qualiton M11; Budapesti (ID = 508987) R-Player
Qualiton M11; Budapesti (ID = 508983) R-Player Qualiton M11; Budapesti (ID = 429151) R-Player
Qualiton M11; Budapesti (ID = 429152) R-Player Qualiton M11; Budapesti (ID = 429291) R-Player
Qualiton M11; Budapesti (ID = 451859) R-Player Qualiton M11; Budapesti (ID = 508975) R-Player
Qualiton M11; Budapesti (ID = 508977) R-Player Qualiton M11; Budapesti (ID = 508979) R-Player
Use red slider bar for more.
Qualiton M11; Budapesti (ID = 451860) R-Player
Budapesti: Qualiton M11 [R-Player] ID = 451860 876x700

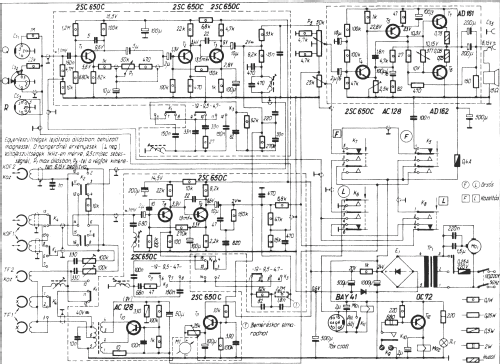

Select picture or schematic to display from thumbnails on the right and click for download.
For model Qualiton M11, Budapesti Rádiótechnikai Gyár (BRG):
Thanks for Mr. Csányi Tibor, Hungary Budapest! Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Budapesti Rádiótechnikai Gyár (BRG)
Year: 1967/1968 ?? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 12: 2SC650 2SC650 2SC650 2SC650 2SC650 2SC650 2SC650 AC128 AC128 OC72 AD161 AD162
Main principle Audio-Amplification
Wave bands - without
Details Other Combination - see Notes
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Qualiton M11 - Budapesti Rádiótechnikai Gyár
Material Various materials
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 370 x 160 x 370 mm / 14.6 x 6.3 x 14.6 inch
Notes Tonbandgerät-Geschwindigkeiten 19,05; 9,53 und 4,75 cm/s und eingebauten Kassettenspieler, Spulen-Ø 18 cm. Radio-, Mikrofon- und Plattenspielereingang.
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Price in first year of sale 6,200.00 HUF
Source of data Radio es Televizio Vevö keszülekek 1967-69

Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
