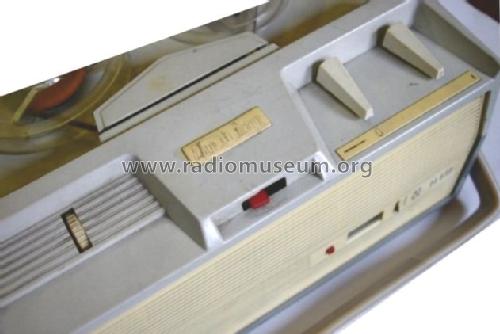

M 632; Budapesti (ID = 636888) R-Player M 632; Budapesti (ID = 636889) R-Player
M 632; Budapesti (ID = 1538826) R-Player M 632; Budapesti (ID = 1538827) R-Player
M 632; Budapesti (ID = 1538829) R-Player M 632; Budapesti (ID = 1678902) R-Player

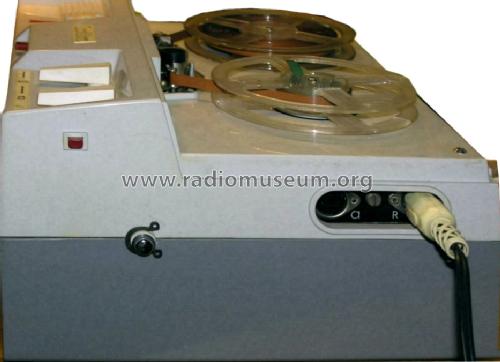

M 632; Budapesti (ID = 1678903) R-Player
Use red slider bar for more.
M 632; Budapesti (ID = 447617) R-Player
Budapesti: M 632 [R-Player] ID = 447617 450x371
Select picture or schematic to display from thumbnails on the right and click for download.
For model M 632, Budapesti Rádiótechnikai Gyár (BRG):
RÁVILL árjegyzék. 1967.

Country:  Hungary
Manufacturer / Brand:  Budapesti Rádiótechnikai Gyár (BRG)
Year: 1967 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 8: OC1071 OC1071 OC1071 OC1074 OC1074 OC1074 OC1075 OC1075
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Line / Batteries (any type) / 110; 220 / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: M 632 - Budapesti Rádiótechnikai Gyár
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 120 x 213 x 268 mm / 4.7 x 8.4 x 10.6 inch
Notes 9,53 cm/s: 60-14000 Hz. 4,76 cm/s: 60-7000 Hz.
Net weight (2.2 lb = 1 kg) 3.3 kg / 7 lb 4.3 oz (7.269 lb)
Price in first year of sale 4'300.00 HUF
Literature/Schematics (1) RÁVILL Árjegyzék, 1967.
Literature/Schematics (4) Híradástechnikai cikkek kereskedelmi árjegyzéke, BP. 1967

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
