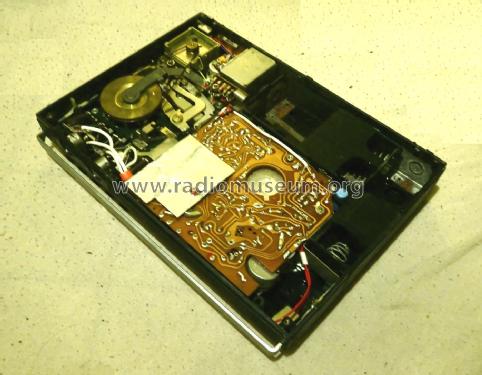

MK-22; Budapesti (ID = 449046) R-Player
Budapesti: MK-22 [R-Player] ID = 449046 492x249
Select picture or schematic to display from thumbnails on the right and click for download.
For model MK-22, Budapesti Rádiótechnikai Gyár (BRG):
Thanks for Mr.Csányi Tibor, Hungary!
Country:  Hungary
Manufacturer / Brand:  Budapesti Rádiótechnikai Gyár (BRG)
Year: 1971 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 10:
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220 / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Model: MK-22 - Budapesti Rádiótechnikai Gyár
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 308 x 60 x 216 mm / 12.1 x 2.4 x 8.5 inch
Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
