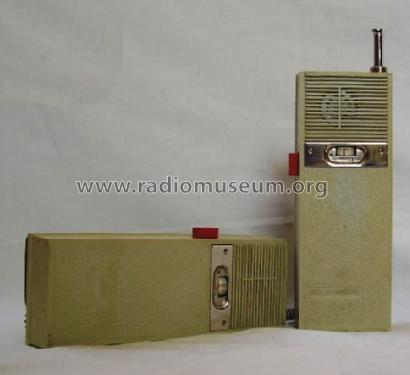

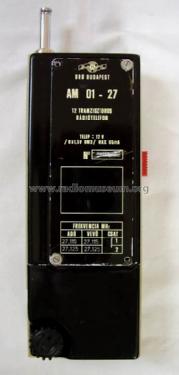

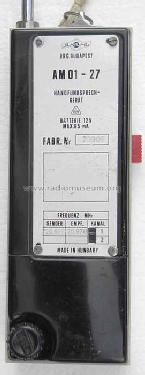

Visszhang (Echo) AM 01-27

Visszhang AM 01-27; Budapesti (ID = 1711442) Citizen Visszhang AM 01-27; Budapesti (ID = 1711444) Citizen
Visszhang AM 01-27; Budapesti (ID = 748965) Citizen Visszhang AM 01-27; Budapesti (ID = 748966) Citizen
Visszhang AM 01-27; Budapesti (ID = 1711443) Citizen Visszhang AM 01-27; Budapesti (ID = 1711514) Citizen
Visszhang AM 01-27; Budapesti (ID = 1711515) Citizen
Use red slider bar for more.
Visszhang AM 01-27; Budapesti (ID = 1711442) Citizen
Budapesti: Visszhang AM 01-27 [Citizen] ID = 1711442 369x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Visszhang (Echo) AM 01-27, Budapesti Rádiótechnikai Gyár (BRG)

Country:  Hungary
Manufacturer / Brand:  Budapesti Rádiótechnikai Gyár (BRG)
Year: 1980 Category: Citizen Band Equipment
Semiconductors (the count is only for transistors) 12: AC125 AC127 AC132 AF136 BFY34
Main principle Transceiver; ZF/IF 455 kHz; 3 AF stage(s)
Wave bands Short Wave (SW only)
Details
Power type and voltage Dry Batteries / 8 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch
Power out
from Radiomuseum.org Model: Visszhang AM 01-27 - Budapesti Rádiótechnikai Gyár
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 74 x 210 x 47 mm / 2.9 x 8.3 x 1.9 inch
Notes

Handfunkgerät für den 27 MHz-CB-Bereich. Zwei Kanäle (Steckquarze) im Bereich 26,965 bis 27,255 MHz, Amplitudenmodulation, Sendeleistung 100mW, NF-Leistung 80 mW.

Jeder Transistortyp nur einmal gelistet.

Net weight (2.2 lb = 1 kg) 0.850 kg / 1 lb 14 oz (1.872 lb)
Literature/Schematics (1) http://patina.uw.hu/

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from Budapesti Rádiótechnikai Gyár (BRG)
Here you find 80 models, 72 with images and 23 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
