HF-Trafo Record
Budich GmbH, Georg; Berlin-Charlottenburg
- Country
- Germany
- Manufacturer / Brand
- Budich GmbH, Georg; Berlin-Charlottenburg
- Year
- 1934 ??
- Category
- Radio part (not a module)
- Radiomuseum.org ID
- 174228
Budich-Katalog 1934
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: HF-Trafo Record - Budich GmbH, Georg; Berlin-
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 75 x 100 x 75 mm / 3 x 3.9 x 3 inch
- Notes

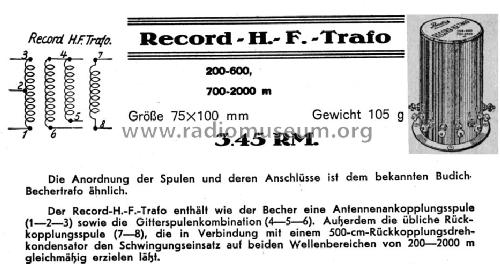

- HF-Trafo "Record" in rundem Aluminiumgehäuse, mit Antennenankopplungsspule, Gitterspulenkombination und Rückkopplungsspule. Wellenbereiche 200-600 und 700-2000m.
- Net weight (2.2 lb = 1 kg)
- 0.105 kg / 0 lb 3.7 oz (0.231 lb)
- Price in first year of sale
- 4.00 RM
- Mentioned in
- -- Original prospect or advert (Katalog Radio Mank, Leipzig (1934), S.64)
- Author
- Model page created by Georg Richter. See "Data change" for further contributors.
