160 Meter Oscillator and Buffer Coil OES-160-A
Bud Radio Inc.; Cleveland (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Bud Radio Inc.; Cleveland (OH)
- Year
- 1943 ??
- Category
- Radio part (not a module)
- Radiomuseum.org ID
- 296172
- Material
- Various materials
- from Radiomuseum.org
- Model: 160 Meter Oscillator and Buffer Coil OES-160-A - Bud Radio Inc.; Cleveland OH
- Dimensions (WHD)
- 69.2 x 85.5 x 45 mm / 2.7 x 3.4 x 1.8 inch
- Notes
-
Es handelt sich um eine Oszillatorspule für das 160m Amateurfunkband mit Ankoppelwicklung. Da die Koppelspule nur an ihren Zuleitungsdrähten aufgehängt ist, kann der Kopplungsgrad leicht durch Verändern des Abstands zwischen Kreis- und Kopplungsspule verändert werden.
Der die Spuleneinheit tragende Unterbau ist mit einem standardmäßigen 5-pol US-Stecker ausgerüstet.

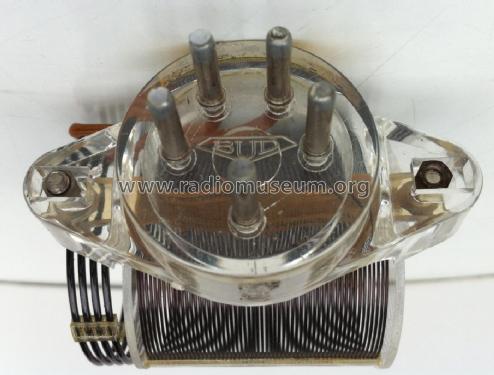

This is an oscillator coil for the 160m amateur radio band with coupling winding. Since the coupling coil is suspended only on its lead wires, the degree of coupling can be easily changed by changing the distance between the circular and coupling coils. The base unit supporting the coil unit is equipped with a standard 5-pin US plug.
Rated for 75 watts.
- Net weight (2.2 lb = 1 kg)
- 0.052 kg / 0 lb 1.8 oz (0.115 lb)
- Author
- Model page created by Harald Giese. See "Data change" for further contributors.
