Code Practice Oscillator Codemaster CPO-128
Bud Radio Inc.; Cleveland (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Bud Radio Inc.; Cleveland (OH)
- Year
- 1953
- Category
- Amateur Equipment (Other, but not Key)
- Radiomuseum.org ID
- 287046
- Number of Tubes
- 1
- Valves / Tubes
- 117N7GT
- Wave bands
- - without
- Power type and voltage
- AC/DC-set / 110 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: Code Practice Oscillator Codemaster CPO-128 - Bud Radio Inc.; Cleveland OH
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 5.5 x 6.5 x 3.5 inch / 140 x 165 x 89 mm
- Notes
-
The Bud Radio Codemaster CPO-128 is a code practice oscillator that can be used as a speaker or cpo by selecting "M" (monitor) or "C" (code) on the side of the cabinet.

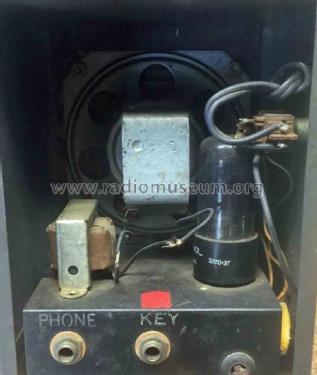

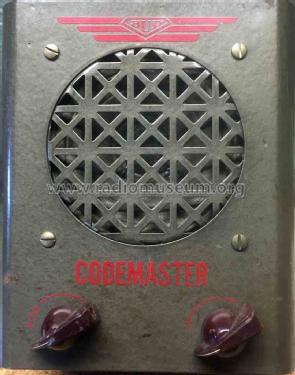

There are three versions of the Bud CPO-128: CPO-128, CPO-128A and CPO-128B. This version, with the 117L7GT or 117N7GT or 117P7GT tube, red lettering and cross-hatched grill, had one side of the AC line directly connected to the key, creating a safety hazard and was changed to the CPO-128A. The three possibilities of tubes are a combination AF amp and power rect.
- Price in first year of sale
- 14.48 USD
- Mentioned in

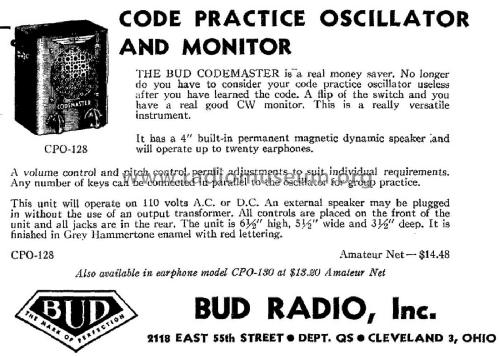

- QST (August 1953 page 75)
- Author
- Model page created by Wayne Childress. See "Data change" for further contributors.
