Code Practice Oscillator Codemaster CPO-128B

Code Practice Oscillator Codemaster CPO-128B; Bud Radio Inc.; (ID = 2061595) Amateur-D
Code Practice Oscillator Codemaster CPO-128B; Bud Radio Inc.; (ID = 2061591) Amateur-D Code Practice Oscillator Codemaster CPO-128B; Bud Radio Inc.; (ID = 2061592) Amateur-D
Code Practice Oscillator Codemaster CPO-128B; Bud Radio Inc.; (ID = 2061593) Amateur-D Code Practice Oscillator Codemaster CPO-128B; Bud Radio Inc.; (ID = 2061594) Amateur-D
Use red slider bar for more.
Code Practice Oscillator Codemaster CPO-128B; Bud Radio Inc.; (ID = 2061591) Amateur-D
Bud Radio Inc.;: Code Practice Oscillator Codemaster CPO-128B [Amateur-D] ID = 2061591 1400x1641
Select picture or schematic to display from thumbnails on the right and click for download.
For model Code Practice Oscillator Codemaster CPO-128B, Bud Radio Inc.; Cleveland (OH)

Country:  United States of America (USA)
Manufacturer / Brand:  Bud Radio Inc.; Cleveland (OH)
Year: 1958 ?? Category: Amateur Equipment (Other, but not Key)
Valves / Tubes 2: 35W4 50C5
Wave bands - without
Details
Power type and voltage AC/DC-set / 110 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: Code Practice Oscillator Codemaster CPO-128B - Bud Radio Inc.; Cleveland OH
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 5.5 x 6.5 x 3.5 inch / 140 x 165 x 89 mm
Notes

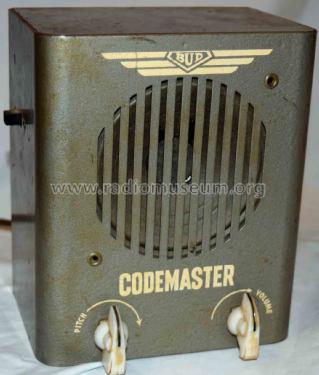

The Bud Radio Codemaster CPO-128B is a code practice oscillator that can be used as a speaker or cpo by selecting "M" (monitor) or "C" (code) on the side of the cabinet.

There are three versions of the Bud CPO-128: CPO-128, CPO-128A and CPO-128B. This version has two tubes (35W4 and 50C5) with white lettering and veritical bars on the grill.

Model page created by Wayne Childress. See "Data change" for further contributors.
