Signal lamp D.180
Bulgin, A.F.; Barking, Essex.
- Pays
- Royaume Uni
- Fabricant / Marque
- Bulgin, A.F.; Barking, Essex.
- Année
- 1937 ??
- Catégorie
- Pièce de radio / composant (pas un module)
- Radiomuseum.org ID
- 356915
- Gammes d'ondes
- - sans
- Tension / type courant
- Alimentation externe ou alimentation principale
- Haut-parleur
- - - Pas de sortie basse fréquence
- Matière
- Matériaux divers
- De Radiomuseum.org
- Modèle: Signal lamp D.180 - Bulgin, A.F.; Barking, Essex.
- Forme
- Formes diverses décrites en notes
- Dimensions (LHP)
- 18 x 45 x 30 mm / 0.7 x 1.8 x 1.2 inch
- Remarques
-

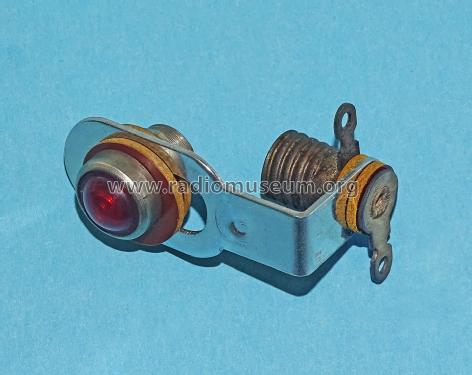

The Bulgin Signal Lamp D180 is one of a range of lamp holders that were used on electronic equipment such as HRO receivers. They could be supplied with transparent or translucent glass or plastic lenses in a range of colours, and sockets for MES or MBC lamp bulbs fitted with terminals or solder tags. The front-of-panel details are chromium plated and the lamp socket is insulated from the mounting bracket by SRBP or -F insulation.
The lamp bulb can have a maximum diameter of about 20 mm. It is replaced from behind the panel and the height of the socket can be adjusted to centre the filament behind the lens. A fixing hole of 3/8" diameter is required for the lamp holder and the external diameter of the lens is 1/2".
- Poids net
- 0.012 kg / 0 lb 0.4 oz (0.026 lb)
- Littérature
- -- Original prospect or advert
- Auteur
- Modèle crée par Bruce Taylor. Voir les propositions de modification pour les contributeurs supplémentaires.
