Cassette Tape Recorder TP70

Cassette Tape Recorder TP70; Bush Radio; London (ID = 2307805) R-Player

Cassette Tape Recorder TP70; Bush Radio; London (ID = 2307806) R-Player

Cassette Tape Recorder TP70; Bush Radio; London (ID = 2307807) R-Player

Cassette Tape Recorder TP70; Bush Radio; London (ID = 2307808) R-Player
Cassette Tape Recorder TP70; Bush Radio; London (ID = 2307813) R-Player Cassette Tape Recorder TP70; Bush Radio; London (ID = 2307814) R-Player

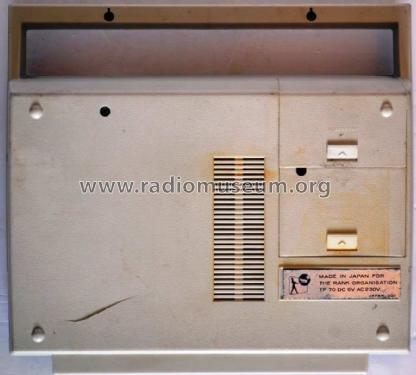

Cassette Tape Recorder TP70; Bush Radio; London (ID = 2307815) R-Player
Use red slider bar for more.
Cassette Tape Recorder TP70; Bush Radio; London (ID = 2307813) R-Player
Bush Radio; London: Cassette Tape Recorder TP70 [R-Player] ID = 2307813 900x790
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cassette Tape Recorder TP70, Bush Radio; London:
Ebay UK item 132728045080 seller jeremhodgso-4

Country:  Great Britain (UK)
Manufacturer / Brand:  Bush Radio; London
Year: 1970 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 7: 2SB75 2SC458 2SB459 2SB370 2SB370 2SB77 2SB77
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 200-240 / C: 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.6 W (unknown quality)
from Radiomuseum.org Model: Cassette Tape Recorder TP70 - Bush Radio; London
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 10.125 x 9 x 2.625 inch / 257 x 229 x 67 mm
Notes

A portable mains/battery powered two track mono cassette tape recorder housed in a two-tone moulded plastic case. Pilot lamp level indicator. Input sockets for radio and microphone. Output socket for 8Ω extension loudspeaker. Elliptical loudspeaker 4 x 3 inch.

Supplied complete with a dynamic microphone, remote control switch and mains lead.



Net weight (2.2 lb = 1 kg) 4 lb 0 oz (4 lb) / 1.816 kg
Price in first year of sale 28.91 GBP
Literature/Schematics (1) ERT Service Chart 1815 dated October 28 1971

Model page created by Howard Craven. See "Data change" for further contributors.
