DAC91

DAC91; Bush Radio; London (ID = 529978) Radio
DAC91; Bush Radio; London (ID = 2428182) Radio DAC91; Bush Radio; London (ID = 2428183) Radio
DAC91; Bush Radio; London (ID = 2428184) Radio DAC91; Bush Radio; London (ID = 2428185) Radio
Use red slider bar for more.

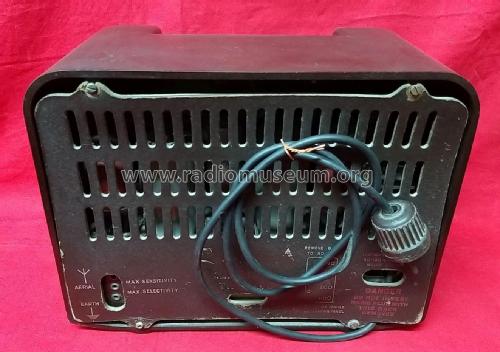

DAC91; Bush Radio; London (ID = 2428182) Radio
Bush Radio; London: DAC91 [Radio] ID = 2428182 933x660
Select picture or schematic to display from thumbnails on the right and click for download.
For model DAC91, Bush Radio; London:
Ebay UK auction item_123905915506 seller brulu06

Country:  Great Britain (UK)
Manufacturer / Brand:  Bush Radio; London
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: CCH35 EF39 EBC33 CL33 CY31
Main principle Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 210; 230; 250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: DAC91 - Bush Radio; London
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 12.675 x 9.125 x 7.875 inch / 322 x 232 x 200 mm
Notes

Similar to model AC91 (AC only).



Source of data -- Schematic
Literature/Schematics (1) Radio And Television Servicing. 1953, page 93.

Model page created by Keith Staines. See "Data change" for further contributors.
