DUG91

DUG91; Bush Radio; London (ID = 529975) Radio

DUG91; Bush Radio; London (ID = 730528) Radio
Use red slider bar for more.
DUG91; Bush Radio; London (ID = 529975) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Great Britain (UK)
Manufacturer / Brand:  Bush Radio; London
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: CCH35 EF39 EBC33 CL33 CY31
Main principle Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 200-250 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: DUG91 - Bush Radio; London
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 16.5 x 29 x 8.5 inch / 419 x 737 x 216 mm
Notes Similar to model SUG91 (AC only).
Source of data -- Schematic

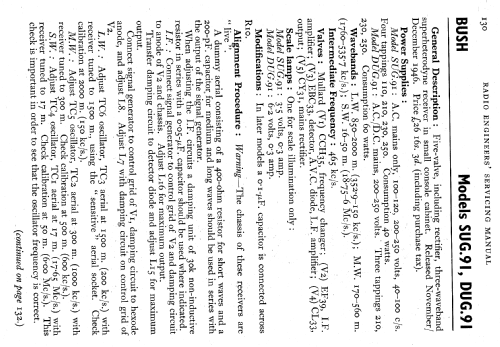

Literature/Schematics (1) Radio And Television Servicing. 1953, page 94

Model page created by Keith Staines. See "Data change" for further contributors.
