MB60; Bush Radio; London (ID = 179291) Radio
Bush Radio; London: MB60 [Radio] ID = 179291 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model MB60, Bush Radio; London:

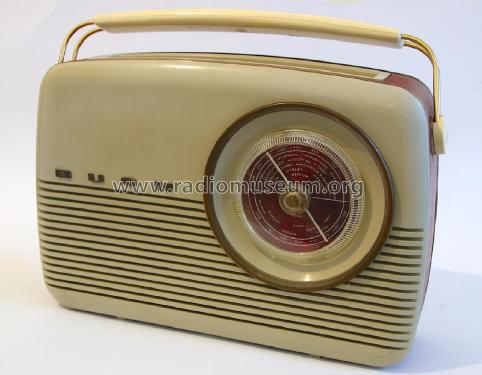

This is a 1958 example of a Bush MB60 MW/LW mains/battery portable valve radio and the first to appear in the familiar David Ogle designed plastic cabinet. It is pale green and red with brass trim.

Country:  Great Britain (UK)
Manufacturer / Brand:  Bush Radio; London
Year: 1957–1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: DK96 DF96 DF96 DAF96 DL96
Main principle Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Line / Batteries (any type) / 110; 210; 220; 250 / 1.5 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: MB60 - Bush Radio; London
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 13.5 x 10.75 x 3.75 inch / 343 x 273 x 95 mm
Notes The first Bush radio in this familar David Ogle designed cabinet. 90 volt battery no longer available.
Net weight (2.2 lb = 1 kg) 3.2 kg / 7 lb 0.8 oz (7.048 lb)
Price in first year of sale 22.00 GBP
Mentioned in "Trader" Service Sheet 1403
Literature/Schematics (1) - - Data from my own collection

Model page created by Howard Craven. See "Data change" for further contributors.



All listed radios etc. from Bush Radio; London
Here you find 343 models, 270 with images and 228 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Bush Radio; London: MB60
Threads: 1 | Posts: 2
Hits: 1393     Replies: 1
bush: MB60;
Mark Stuckey
25.Feb.14
  1

I have recently required a MB60 electrolitic capacitors dated 1957, my note is my model is different in as much as the standard data sheet shows the valve layout V5  is located halfway up the chassis next to L9 my version is in fact fitted at the bottom next to V4, is this a known variation or is the data sheet only correct for one variation of this model. Mark Stuckey, Cromer Norfolk

Howard Craven
25.Feb.14
  2

Hello Mark,

Yes Trader sheet 1403 indicates V5 next to L9, but in the Bush service manual it shows V5 next to V4.

Yours is an early version, mine is the later version. Differences in the circuit are noted under 'Modifications' in the Trader Sheet.



Regards .... Howard
