SRG110T

SRG110T; Bush Radio; London (ID = 1276377) Radio

SRG110T; Bush Radio; London (ID = 1276378) Radio

SRG110T; Bush Radio; London (ID = 1276380) Radio

SRG110T; Bush Radio; London (ID = 1276381) Radio

SRG110T; Bush Radio; London (ID = 1276382) Radio

SRG110T; Bush Radio; London (ID = 1276383) Radio

SRG110T; Bush Radio; London (ID = 1276384) Radio

SRG110T; Bush Radio; London (ID = 1276385) Radio

SRG110T; Bush Radio; London (ID = 1276386) Radio

SRG110T; Bush Radio; London (ID = 1276387) Radio
Use red slider bar for more.
SRG110T; Bush Radio; London (ID = 1276377) Radio

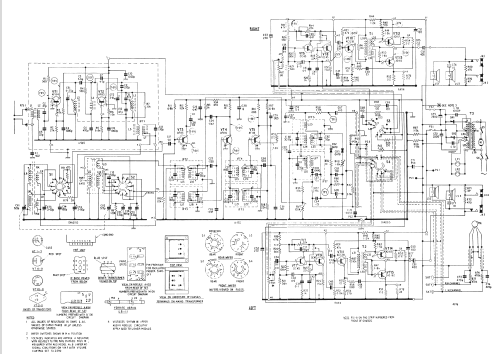

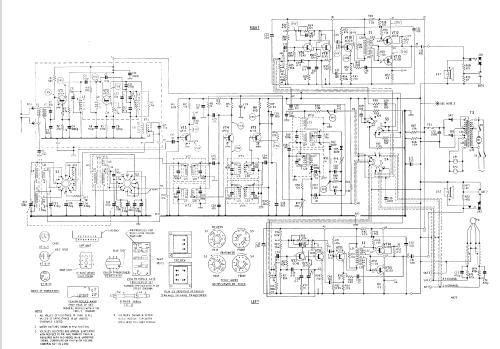

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Great Britain (UK)
Manufacturer / Brand:  Bush Radio; London
Year: 1967 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 15: AF114 AF115 AF115 AF116 AF116 OC45 OC45 OC45 OC45 AC128 AC128 AD162 AD162 AD162 AD162
Main principle Superheterodyne (common); ZF/IF 470/10700 kHz; 3 AF stage(s)
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm
Power out 6 W (unknown quality)
from Radiomuseum.org Model: SRG110T - Bush Radio; London
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 32 x 29 x 15 inch / 813 x 737 x 381 mm
Notes Stereophonic radiogram with record changer B.S.R type UA15.
Maximum loading up to six records.
Two 6,5 in. circular loudspeakers.
Power 3 watts per channel
Net weight (2.2 lb = 1 kg) 62.25 lb (62 lb 4 oz) / 28.262 kg
Source of data -- Original-techn. papers.

Model page created by Jose Casas-Avalos. See "Data change" for further contributors.
