SRG112; Bush Radio; London (ID = 1276432) Radio
Bush Radio; London: SRG112 [Radio] ID = 1276432 316x278
Select picture or schematic to display from thumbnails on the right and click for download.
For model SRG112, Bush Radio; London:

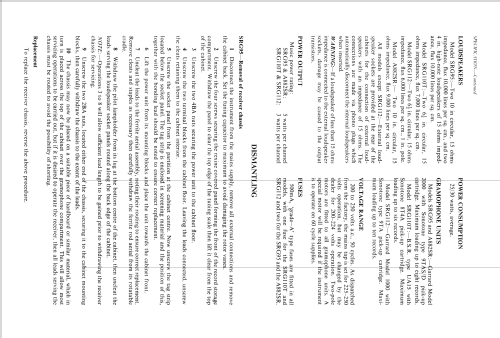

Picture from Service Manual published by Rank Bush Murphy Limited

Country:  Great Britain (UK)
Manufacturer / Brand:  Bush Radio; London
Year: 1967 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 15: AF114 AF115 AF115 AF116 AF116 OC45 OC45 OC45 OC45 AC128 AC128 AD162 AD162 AD162 AD162
Main principle Superheterodyne (common); ZF/IF 470/10700 kHz; 3 AF stage(s)
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker 2 Loudspeakers / Ø 6.5 inch = 16.5 cm
Power out 6 W (unknown quality)
from Radiomuseum.org Model: SRG112 - Bush Radio; London
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 35 x 29 x 14 inch / 889 x 737 x 356 mm
Notes Stereophonic radiogram with gramophone unit Garrard model 1000.
Maximum loading up to ten records.
Two 6,5 in. circular loudspeakers.
Power 3+3 W.
Net weight (2.2 lb = 1 kg) 58.75 lb (58 lb 12 oz) / 26.673 kg
Source of data -- Original-techn. papers.

Model page created by Jose Casas-Avalos. See "Data change" for further contributors.
