SRG95
Bush Radio; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Bush Radio; London
- Year
- 1967 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 221797

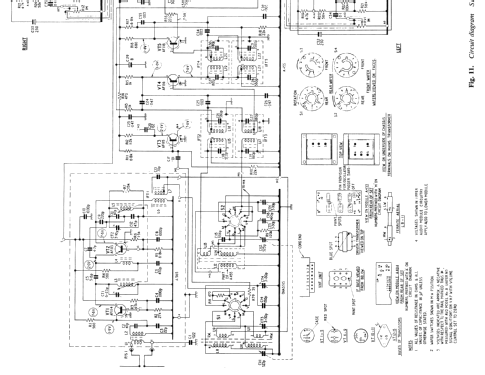

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 15
- Semiconductors
- AF114 AF115 AF115 AF116 AF116 OC45 OC45 OC45 OC45 AC128 AC128 AD162 AD162 AD162 AD162
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- 4 Loudspeakers / Ø 10 inch = 25.4 cm
- Power out
- 10 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: SRG95 - Bush Radio; London
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 52 x 27 x 16 inch / 1321 x 686 x 406 mm
- Notes

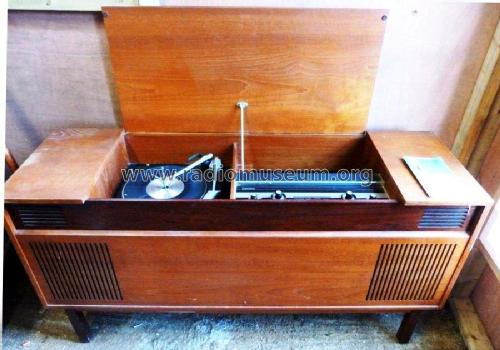

- Stereophonic radiogram whit record changer player Garrard model 2000.
Power 5 W per channel.
Two loudspeaker 10 in. circular and two 4 in. high-note loudspeaker
- Net weight (2.2 lb = 1 kg)
- 93 lb 0 oz (93 lb) / 42.222 kg
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Jose Casas-Avalos. See "Data change" for further contributors.
