SRP41 Mk 1 and Mk 1a
Bush Radio Ltd.; london
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Bush Radio Ltd.; london
- Year
- 1966
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 175245

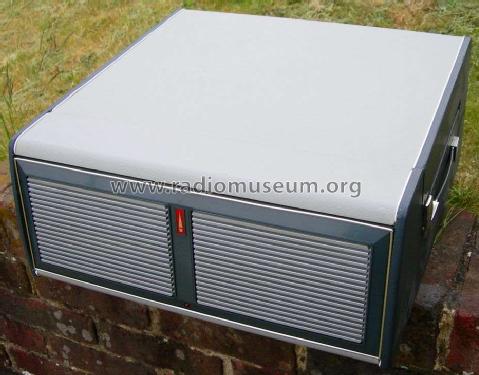

A 1966 Bush SRP41 record player
A 1966 Bush SRP41 record player
A 1966 Bush SRP41 record player
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 200-225; 226-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 20 cm = 7.9 inch
- Power out
- 5 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: SRP41 Mk 1 and Mk 1a - Bush Radio Ltd.; london
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 18.5 x 8.25 x 17.5 inch / 470 x 210 x 445 mm
- Notes
- Transistorised record player in a wooden case with two-tone grey rexine cover. BSR Monarch UA15 superslim four-speed six-record auto-changer, Sonotone 8T4A stereo ceramic cartridge with LP/78 or LP/LP turnover stylus. 8 x 6 inch elliptical loudspeaker. Additional matching AU41 amplifier required for stereo reproduction. Later SRP41 Mk 2 versions use both silicon and germanium transistors.
- Net weight (2.2 lb = 1 kg)
- 10.5 kg / 23 lb 2 oz (23.128 lb)
- Literature/Schematics (1)
- ERT Service sheet 1619
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
