• Year
  • 1947
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 140842

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 200-250 Volt
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet.
  • from Radiomuseum.org

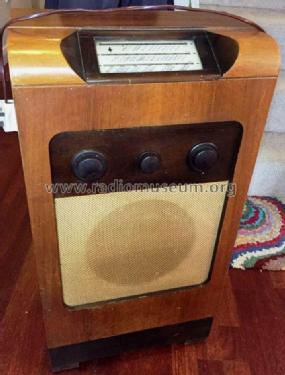

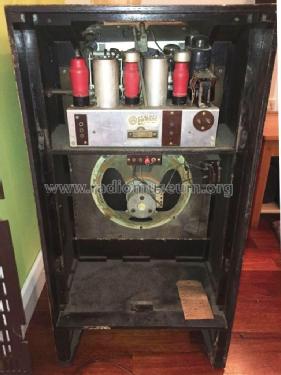

  • Model: SUG3 - Bush Radio; London
  • Notes
  • Similar to model DUG3 (AC/DC).
  • Source of data
  • -- Schematic
  • Literature/Schematics (1)
  • Radio And Television Servicing. 1953, page 95.
  • Author
  • Model page created by Keith Staines. See "Data change" for further contributors.
