• Country
• Great Britain (UK)

• Manufacturer / Brand
• Bush Radio Ltd.; london

• Year
• 1949

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 289685

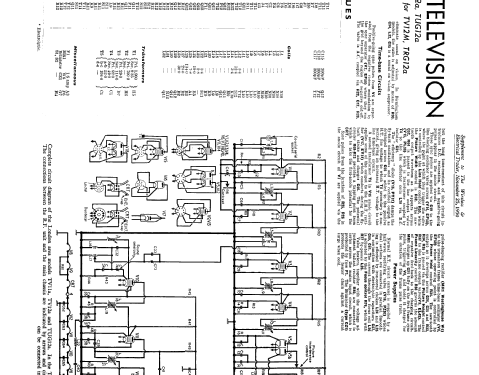

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 19

• Valves / Tubes
• EF50 EF50 EF50 EF50 EB41 EF50 EF50 EF50 EL42 EF50 EF50 EB41 EL42 EF50 PL38 PY31 EY51 PZ30 MW31-14C

• Main principle
• TRF with diode detector

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• AC/DC-set / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Television Receiver TUG12B - Bush Radio Ltd.; london

• Shape
• Console with any shape - in general

• Notes

• 12 inch 405 lines TV with Birmingham single channel tuner, released September 1949. Similar to the TUG12A model with London single channel tuner.

• Price in first year of sale
• 82.00 GBP

• Mentioned in
• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (971/T6)

• Author
• Model page created by Howard Craven. See "Data change" for further contributors.
