• Country
• Great Britain (UK)

• Manufacturer / Brand
• Bush Radio; London

• Year
• 1950

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 92437

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• EF91 EF91 EF91 EF91 EB91 EF91 EF91 EF91 EB91 PL33 ECL80 ECL80 PL38 EY51 PZ30 MW31-16 or MW31-18

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• AC/DC-set / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm

• Power out
• 1 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: TUG24 - Bush Radio; London

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 19.5 x 36.5 x 19 inch / 495 x 927 x 483 mm

• Notes
• Console style TV set with doors with 12 inch 405 lines picture tube. Tuneable into one channel broadcasting in the 45-66.75 MHz GB VHF band 1. Chassis similar to that in the TV22 and TV24 models.

• Net weight (2.2 lb = 1 kg)
• 85 lb (85 lb 0 oz) / 38.590 kg

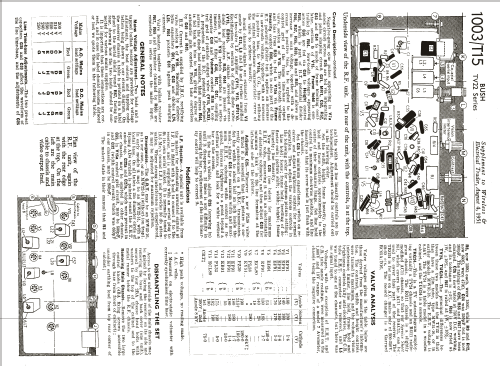

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by a member from A. See "Data change" for further contributors.
