For model VHF101, Bush Radio; London:
Ebay UK auction item number 162350609571 seller morgankl

Country:  Great Britain (UK)
Manufacturer / Brand:  Bush Radio; London
Year: 1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: BF222 BF222 BF273 BF273 BF273 BC153 BC132 BC115 AC128 AC176
Main principle Superheterodyne (common); ZF/IF 470/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 200-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: VHF101 - Bush Radio; London
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 470 x 200 x 159 mm / 18.5 x 7.9 x 6.3 inch
Notes

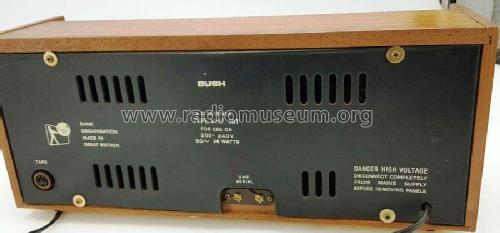

An AC mains powered 10 transistor AM/FM table radio housed in a wooden cabinet, covering the MW (187 - 570 metres), LW (1070 - 1900 metres) and VHF (88 - 108 MHz) bands. Socket for tape recorder (5 pin DIN) and a connector for an external FM aerial. Elliptical loudspeaker 6 x 4 inches.

Similar to Murphy A857 model.

Net weight (2.2 lb = 1 kg) 4.4 kg / 9 lb 11.1 oz (9.692 lb)
Literature/Schematics (1) -- Original-techn. papers.

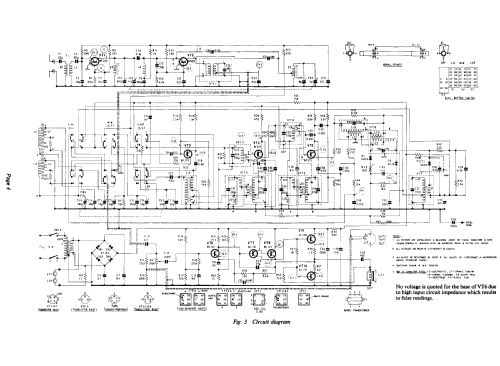

Literature/Schematics (2) - - Manufacturers Literature (Bush Murphy Service Information TP1754 dated 1/8/70)

Model page created by Howard Craven. See "Data change" for further contributors.
