For model VTR125, Bush Radio; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Bush Radio; London
Year: 1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: 2SC645 2SC645 2SA102 2SA104 2SC829 2SC829 2SB175 2SB175 2SB475 2SB475
Main principle Superheterodyne (common); ZF/IF 470/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / AA: 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: VTR125 - Bush Radio; London
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes

A small portable battery powered ten transistor AM/FM radio covering MW (185-570 metres)  and VHF (87.5-104MHz). Switchable AFC on FM and Local/Distant signal attenuator. Socket for earphone. Leather carry case.

Literature/Schematics (1) -- Original-techn. papers.
Literature/Schematics (2) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1923 dated 23 January 1970)

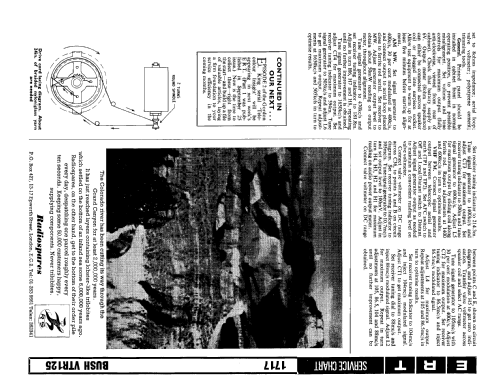

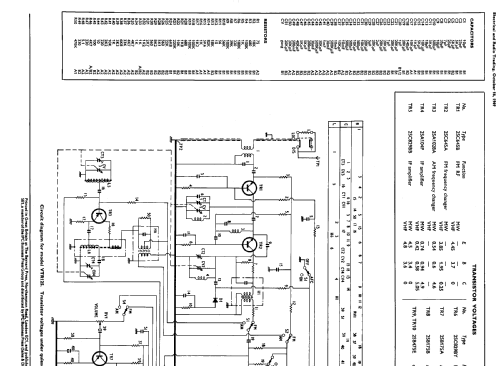

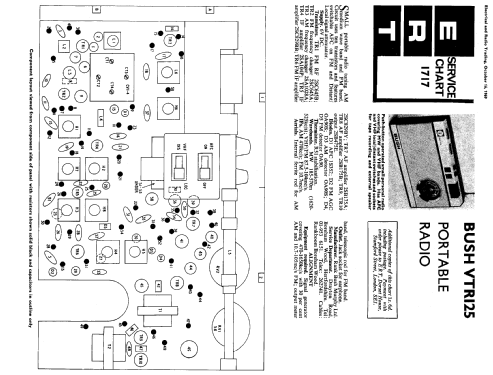

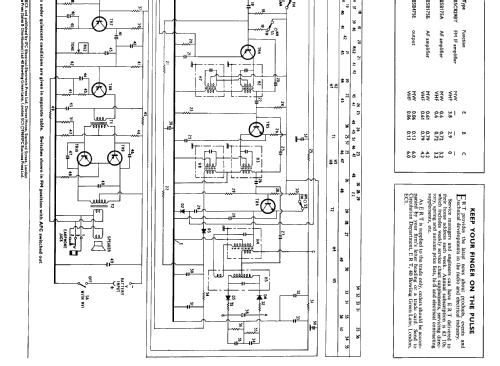

Literature/Schematics (3) ERT Service Chart 1717 dated October 16 1969

Model page created by Howard Craven. See "Data change" for further contributors.
