Portable Radio BA 5004

Portable Radio BA 5004; BUSH Limited India; (ID = 2575465) Radio

Portable Radio BA 5004; BUSH Limited India; (ID = 2575466) Radio

Portable Radio BA 5004; BUSH Limited India; (ID = 2575467) Radio
Portable Radio BA 5004; BUSH Limited India; (ID = 1860124) Radio Portable Radio BA 5004; BUSH Limited India; (ID = 1860125) Radio
Portable Radio BA 5004; BUSH Limited India; (ID = 1860126) Radio Portable Radio BA 5004; BUSH Limited India; (ID = 2535296) Radio
Portable Radio BA 5004; BUSH Limited India; (ID = 2535297) Radio Portable Radio BA 5004; BUSH Limited India; (ID = 2535298) Radio

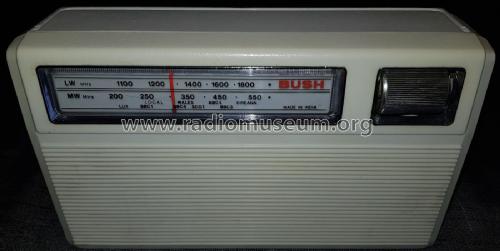

Portable Radio BA 5004; BUSH Limited India; (ID = 2535299) Radio Portable Radio BA 5004; BUSH Limited India; (ID = 2575460) Radio
Portable Radio BA 5004; BUSH Limited India; (ID = 2575461) Radio Portable Radio BA 5004; BUSH Limited India; (ID = 2575462) Radio
Use red slider bar for more.

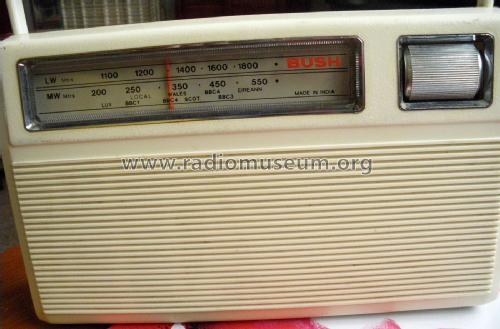

Portable Radio BA 5004; BUSH Limited India; (ID = 1860124) Radio
BUSH Limited India;: Portable Radio BA 5004 [Radio] ID = 1860124 1400x923
Select picture or schematic to display from thumbnails on the right and click for download.
For model Portable Radio BA 5004, BUSH Limited India; Bombay:
Picture courtesy of Douglas Todd

Country:  India
Manufacturer / Brand:  BUSH Limited India; Bombay
Year: 1975 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: BF194 BF195 BF195 BC158 BC148 AC127 AC128 OA79
Main principle Superheterodyne (common); ZF/IF 470 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / D: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Portable Radio BA 5004 - BUSH Limited India; Bombay
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes

Made in BUSH India Limited.

External source of data Data courtesy of guest Douglas Todd
Literature/Schematics (1) -- Original-techn. papers.

Model page created by John Kusching. See "Data change" for further contributors.



All listed radios etc. from BUSH Limited India; Bombay
Here you find 3 models, 3 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
