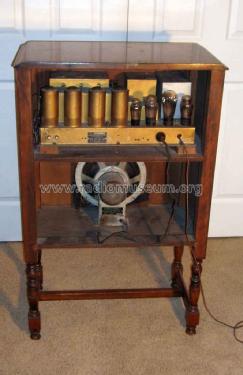

Oxford ; Cadillac Radio Mfg. (ID = 1283551) Radio Oxford ; Cadillac Radio Mfg. (ID = 1283552) Radio
Oxford ; Cadillac Radio Mfg. (ID = 240476) Radio Oxford ; Cadillac Radio Mfg. (ID = 1283553) Radio
Oxford ; Cadillac Radio Mfg. (ID = 1283554) Radio
Use red slider bar for more.

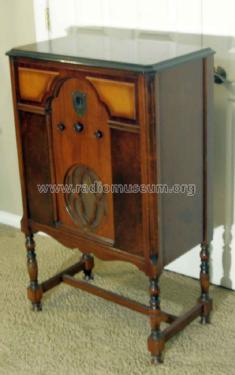

Oxford ; Cadillac Radio Mfg. (ID = 1283551) Radio
Cadillac Radio Mfg.: Oxford [Radio] ID = 1283551 880x1400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oxford, Cadillac Radio Mfg. Co.

Country:  United States of America (USA)
Manufacturer / Brand:  Cadillac Radio Mfg. Co.
Year: 1929 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 224 224 224 227 227 245 245 280
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 95-130 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Oxford - Cadillac Radio Mfg. Co.
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 25 x 42.75 x 15.25 inch / 635 x 1086 x 387 mm

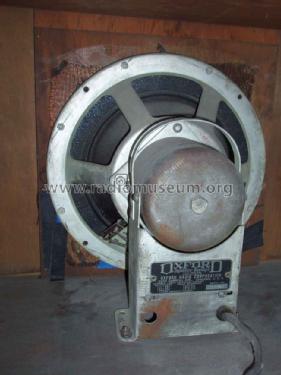

Notes Employs an Oxford Dynamic Speaker.
The tube UX245, later named 245 and 45 was introduced in March 1929. Therefore this model can not be earlier.
Price in first year of sale 163.00 $
Literature/Schematics (1) Chicago Salvage Stock Store catalogue

Model page created by Vitor Oliveira. See "Data change" for further contributors.
