Integrated Amplifier Azur 340a

Integrated Amplifier Azur 340a; Cambridge Audio (ID = 1853969) Ampl/Mixer Integrated Amplifier Azur 340a; Cambridge Audio (ID = 1853970) Ampl/Mixer

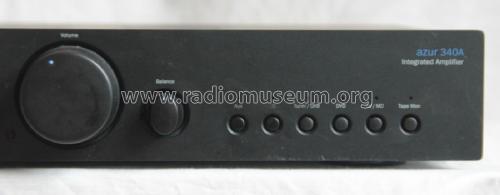

Integrated Amplifier Azur 340a; Cambridge Audio (ID = 1853971) Ampl/Mixer Integrated Amplifier Azur 340a; Cambridge Audio (ID = 1853973) Ampl/Mixer
Integrated Amplifier Azur 340a; Cambridge Audio (ID = 1853974) Ampl/Mixer Integrated Amplifier Azur 340a; Cambridge Audio (ID = 1853976) Ampl/Mixer
Integrated Amplifier Azur 340a; Cambridge Audio (ID = 1853977) Ampl/Mixer Integrated Amplifier Azur 340a; Cambridge Audio (ID = 1853981) Ampl/Mixer
Use red slider bar for more.
Integrated Amplifier Azur 340a; Cambridge Audio (ID = 1853969) Ampl/Mixer
Cambridge Audio: Integrated Amplifier Azur 340a [Ampl/Mixer] ID = 1853969 1400x355
Select picture or schematic to display from thumbnails on the right and click for download.
For model Integrated Amplifier Azur 340a, Cambridge Audio Laboratories Ltd.; St. Ives, Huntingdon

Country:  Great Britain (UK)
Manufacturer / Brand:  Cambridge Audio Laboratories Ltd.; St. Ives, Huntingdon
Year: 2004 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker - This model requires external speaker(s).
Power out 80 W (undistorted)
from Radiomuseum.org Model: Integrated Amplifier Azur 340a - Cambridge Audio Laboratories
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 430 x 70 x 310 mm / 16.9 x 2.8 x 12.2 inch
Notes
Power output: 40 watts per channel into 8 Ohms (stereo)

Frequency response: 5Hz to 50kHz

Total harmonic distortion: 0.09%

Input sensitivity: 350mV (line)

Signal to noise ratio: 92dB (line)

Speaker load impedance: 4 Ohms  to 8 Ohms
Net weight (2.2 lb = 1 kg) 6.2 kg / 13 lb 10.5 oz (13.656 lb)

Model page created by Bartosz Szwed. See "Data change" for further contributors.
