103K21

103K21 ; Canadian Marconi Co. (ID = 1543439) Television 103K21 ; Canadian Marconi Co. (ID = 1543440) Television
Use red slider bar for more.

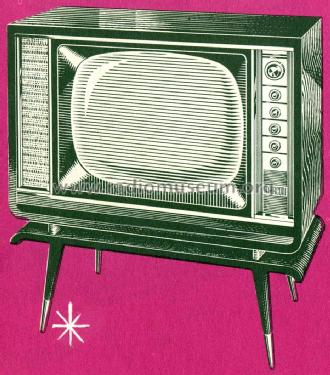

103K21 ; Canadian Marconi Co. (ID = 1543439) Television
Canadian Marconi Co.: 103K21 [Television] ID = 1543439 933x1059
Select picture or schematic to display from thumbnails on the right and click for download.
For model 103K21, Canadian Marconi Co. Ltd. (CMC); Montreal:

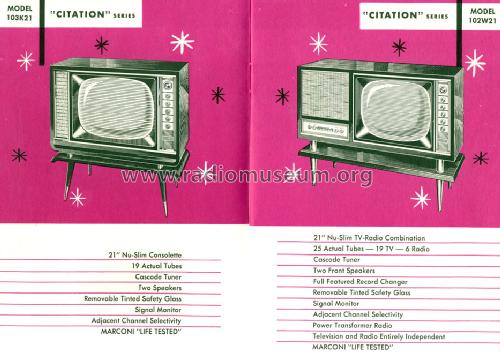

Scanned from the handsome line Marconi Booklet for 1959.

Country:  Canada
Manufacturer / Brand:  Canadian Marconi Co. Ltd. (CMC); Montreal
alternative name

CMC Canada || Marconi, Canada
Year: 1958/1959 Category: Television Receiver (TV) or Monitor
Valves / Tubes 19:
Main principle Super-Heterodyne (Super in general)
Details
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 103K21 - Canadian Marconi Co. Ltd. CMC;
Material Wooden case
Shape Console with any shape - in general
Notes

21 inch Nu-Slim Consolette.

Literature/Schematics (3) The handsome line Marconi Booklet for 1959.

Model page created by Ernst Erb. See "Data change" for further contributors.



All listed radios etc. from Canadian Marconi Co. Ltd. (CMC); Montreal
Here you find 306 models, 233 with images and 221 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
