- Country
- Canada
- Manufacturer / Brand
- Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
- Year
- 1939 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 266894
-
- alternative name: CMC Canada || Marconi, Canada

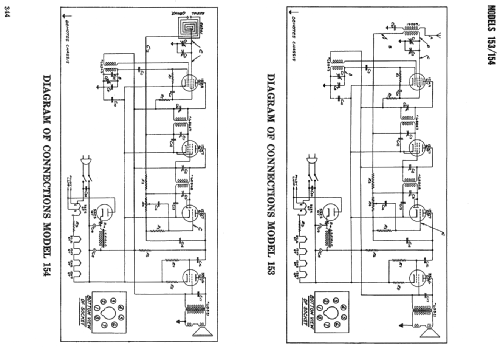

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 0
- Main principle
- Superheterodyne (common); ZF/IF 462.5 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
- Power out
- 0.9 W (1.9 W max.)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 153 - Canadian Marconi Co. Ltd. CMC,
- Dimensions (WHD)
- 9.5 x 6.75 x 5.5 inch / 241 x 171 x 140 mm
- Notes
-
The Canadian Marconi model 153 is a 5-tube radio for broadcast reception. Available in ivory and walnut colour. Requires an external wire antenna. Model 154 is functionally the same but has an internal loop antenna and a different cabinet.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (Marconi Data Sheet 91)
- Literature/Schematics (2)

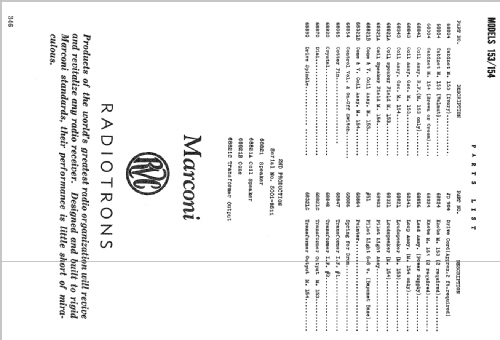

- Marconi Service Manual (Volume 1) (Page 343-346)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
