• Country
• Canada

• Manufacturer / Brand
• Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC

• Year
• 1963 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 309298

• • alternative name: CMC Canada || Marconi, Canada

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• 2SA57 2SA58 2SA52 2SA49 2SA53 2SB54 2SB54 2SB189 2SB189

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / C: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.3 W (unknown quality)

• from Radiomuseum.org
• Model: 3 Band 9 Transistor 2012 - Canadian Marconi Co. Ltd. CMC,

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

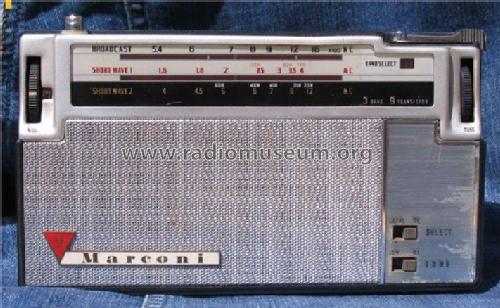

• The Canadian Marconi model 2012 is a portable 9-transistor radio. Covers standard broadcast and 1.8-4 MHz and 4-11 MHz shortwave.

  Similar to the models reported under Toshiba 9TL-489R.

  Made in Japan by Toshiba

• Literature/Schematics (1)
• Radio College of Canada (RCC) (1963 Supplement 62)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
