• Country
• Canada

• Manufacturer / Brand
• Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC

• Year
• 1941 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 118434

• • alternative name: CMC Canada || Marconi, Canada

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6SK7 6SA7 6SK7 6SQ7 6U5 6V6G 5Y4G

• Main principle
• Superheterodyne (common); ZF/IF 462.5 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• Power out
• 8.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 210 - Canadian Marconi Co. Ltd. CMC,

• Shape
• Console with Push Buttons.

• Mentioned in

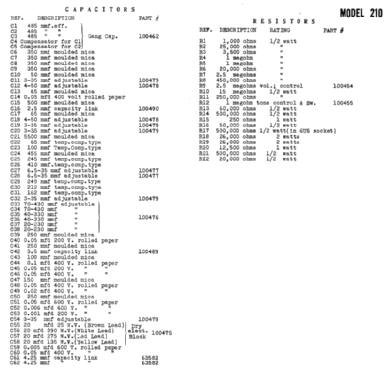

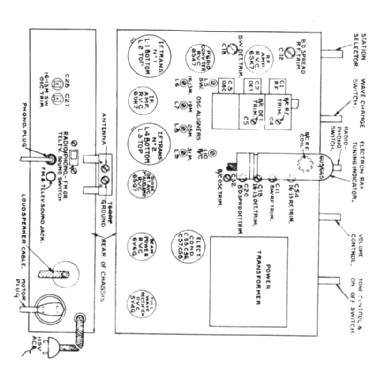

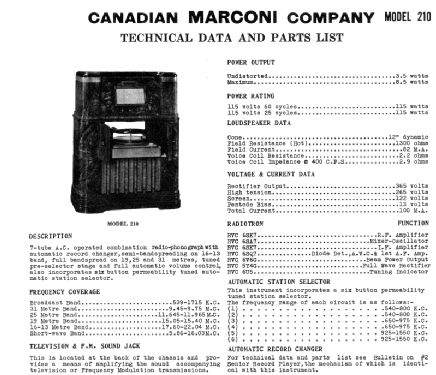

• -- Original-techn. papers. (Canadian Marconi Service Manual, Vol. 1)

• Author
• Model page created by John Bartley. See "Data change" for further contributors.
