27-SW ; Canadian Marconi Co. (ID = 1851787) Radio
Canadian Marconi Co.: 27-SW [Radio] ID = 1851787 601x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model 27-SW, Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC

Country:  Canada
Manufacturer / Brand:  Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
alternative name

CMC Canada || Marconi, Canada
Year: 1931/1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: 224 227A 235 224 227A 235 227A 227A 247 247 280
Main principle Superhet with RF-stage; ZF/IF 175 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110-120 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
Power out
from Radiomuseum.org Model: 27-SW - Canadian Marconi Co. Ltd. CMC,
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 25.5 x 44.5 x 16 inch / 648 x 1130 x 406 mm
Notes

Separate short-wave converter; Push-pull af output.

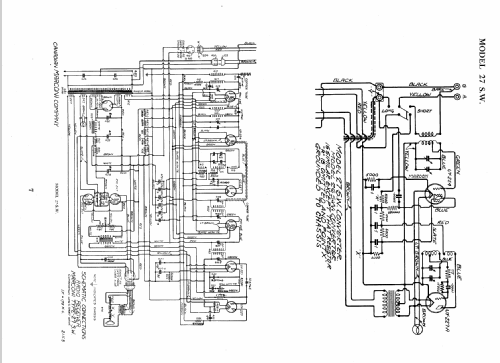

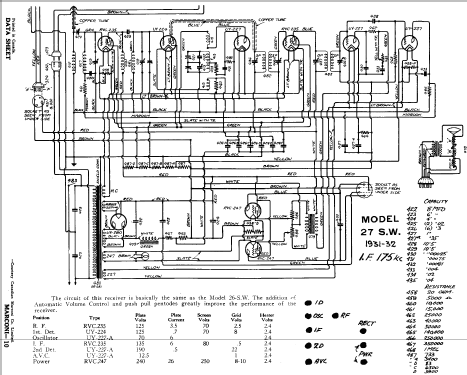

Literature/Schematics (1) Radio College of Canada (RCC) (Marconi data sheet 8 & 10)

Model page created by Greg Bilodeau. See "Data change" for further contributors.
