• Year
  • 1935 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 299068
    • alternative name: CMC Canada || Marconi, Canada

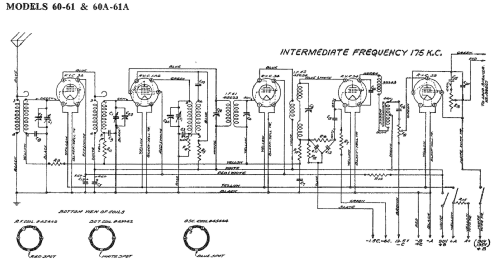

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superhet with RF-stage; ZF/IF 175 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries / 2 & 2 x 45 or 3 x 45 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.8 W (1.2 W max.)
  • from Radiomuseum.org
  • Model: 60 - Canadian Marconi Co. Ltd. CMC,
  • Notes
  • The Canadian Marconi model 60 is a 5-tube battery powered radio for broadcast reception. Can be powered by 90 or 135 volt "B" supply.

  • Author
  • Model page created by Tom Seeger. See "Data change" for further contributors.
