• Country
• Canada

• Manufacturer / Brand
• Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 241832

• • alternative name: CMC Canada || Marconi, Canada

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 34 1A6 34 34 33

• Main principle
• Superhet with RF-stage; ZF/IF 175 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 2 or 2.3 & 90 & 90 or 135 & -1.5 & -6 & -13.5 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Wooden case

• from Radiomuseum.org
• Model: 60-DC - Canadian Marconi Co. Ltd. CMC,

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Price in first year of sale
• 59.95 $

• Literature/Schematics (1)

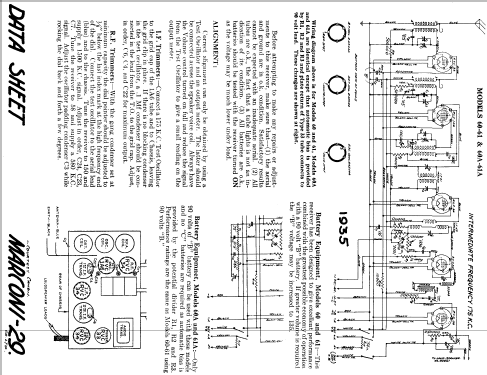

• Radio College of Canada (RCC) (Marconi data sheet 29)

• Literature/Schematics (3)
• Marconi Folder for 1936.

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
