6MF080

6MF080 ; Canadian Marconi Co. (ID = 1193620) Car Radio

6MF080 ; Canadian Marconi Co. (ID = 1193621) Car Radio

6MF080 ; Canadian Marconi Co. (ID = 1193622) Car Radio

6MF080 ; Canadian Marconi Co. (ID = 1193623) Car Radio

6MF080 ; Canadian Marconi Co. (ID = 1193624) Car Radio

6MF080 ; Canadian Marconi Co. (ID = 1193625) Car Radio

6MF080 ; Canadian Marconi Co. (ID = 1193626) Car Radio

6MF080 ; Canadian Marconi Co. (ID = 1193627) Car Radio
6MF080 ; Canadian Marconi Co. (ID = 1193619) Car Radio
Use red slider bar for more.
6MF080 ; Canadian Marconi Co. (ID = 1193619) Car Radio
Canadian Marconi Co.: 6MF080 [Car Radio] ID = 1193619 933x436
Select picture or schematic to display from thumbnails on the right and click for download.
For model 6MF080, Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC:
Picture from Marconi Radio Service Manual

Country:  Canada
Manufacturer / Brand:  Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
alternative name

CMC Canada || Marconi, Canada
Year: 1940 ?? Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 6: 7A7 7B8 7A7 7B6 7C5 7Y4
Main principle Superhet with RF-stage; ZF/IF 265 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6.3 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: 6MF080 - Canadian Marconi Co. Ltd. CMC,
Material Metal case
Shape Chassis only or for «building in»
Notes The Marconi Model 6MF080 is a 6.3V Battery operated 6 Tube Car Radio. BC Band Tuning Range: 540 to 1600kHz. Uses Qty(1) Elliptical 6" x 9" speaker. Made for Ford.

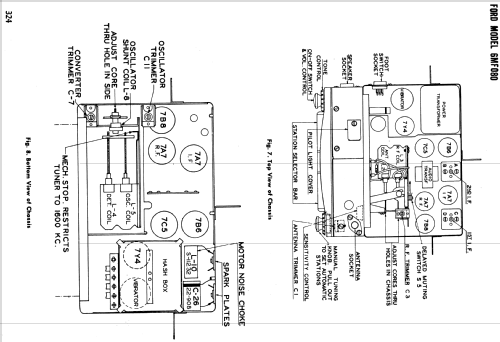

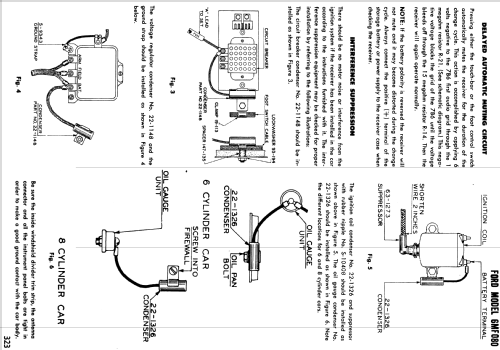

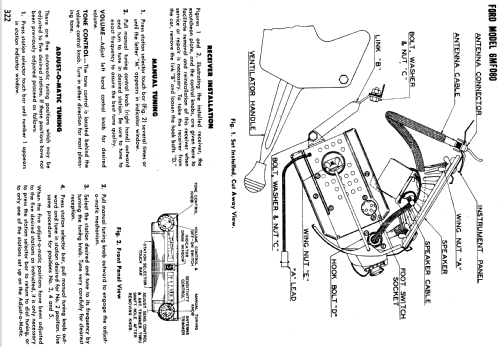

Literature/Schematics (1) Marconi Service Manual Volume No. 2 (Volume 2, Page 321)

Model page created by John Kusching. See "Data change" for further contributors.



All listed radios etc. from Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
Here you find 443 models, 303 with images and 363 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
